Database Panel

The Database panel manages everything that lives inside one database: schema, storage layout, indexes, dictionary, metrics, settings and per-database backups.

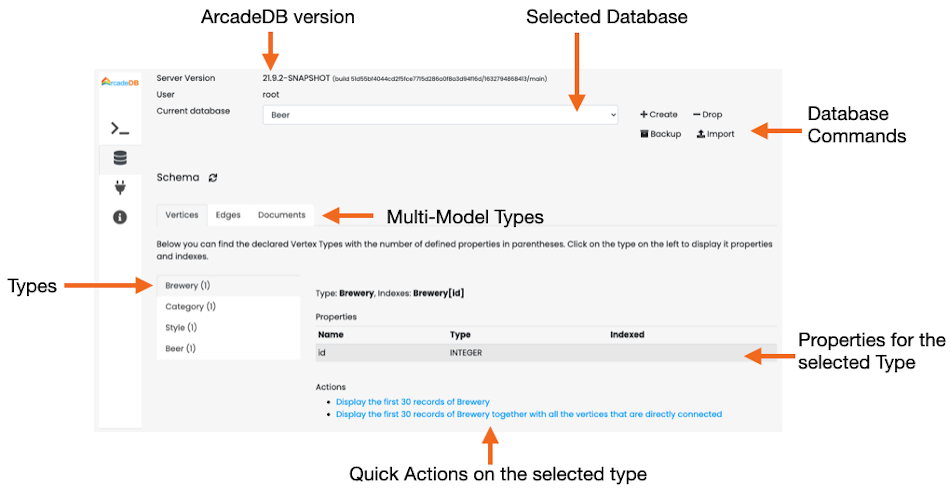

Database Panel

The header shows the current user, the database selector, and the database-level actions:

  • Create Database — create a new database from a name.

  • Import Dataset — open a modal to import a dataset (e.g. importer formats, JSON, OrientDB or Neo4j export).

  • Drop Database — irreversible removal of the current database.

  • Reset Database — drop all data and schema while keeping the database file.

  • Backup Database — trigger an immediate backup of the current database. The resulting file is written under backups/<db-name>/<db-name>-backup-<timestamp>.zip. See Backup.

The panel is split into seven sub-tabs.

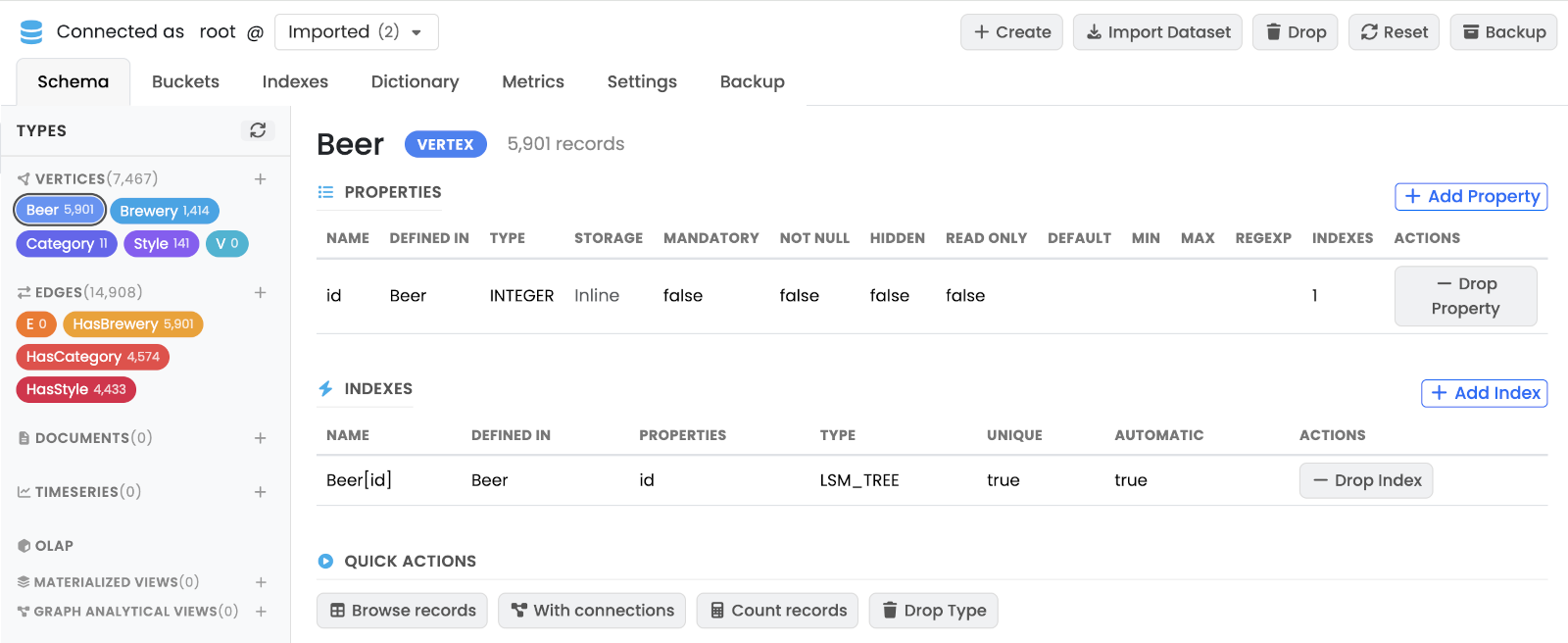

Schema

Lists every type in the database (document types, vertex types and edge types) in a scrollable left sidebar. Selecting a type loads its detail on the right: declared properties (name, type, constraints), indexes built on the type, parent / child types, and quick-action buttons.

Schema sub-tab

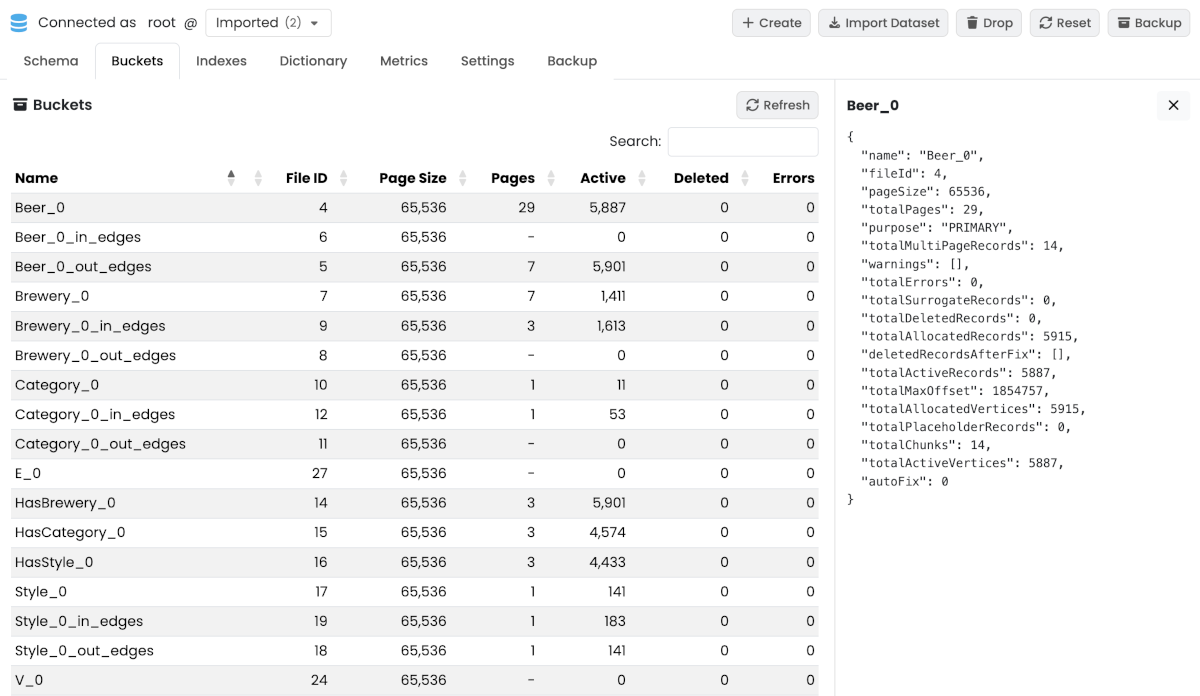

Buckets

Lists the storage buckets that back the database. Selecting a row opens a detail panel on the right with file path, record count, page count and per-bucket counters.

Buckets sub-tab

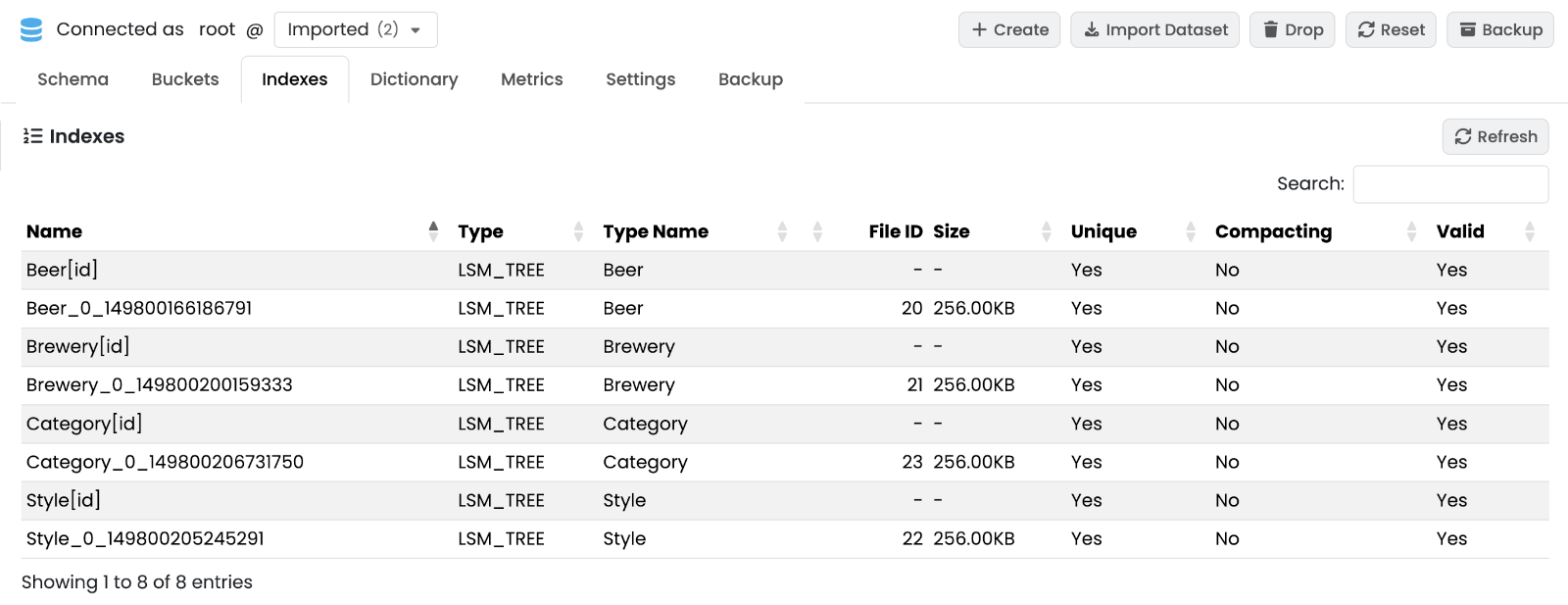

Indexes

Lists every index defined on the database with type, properties, status and entry count. Selecting a row opens a detail panel with the index definition and statistics.

Indexes sub-tab

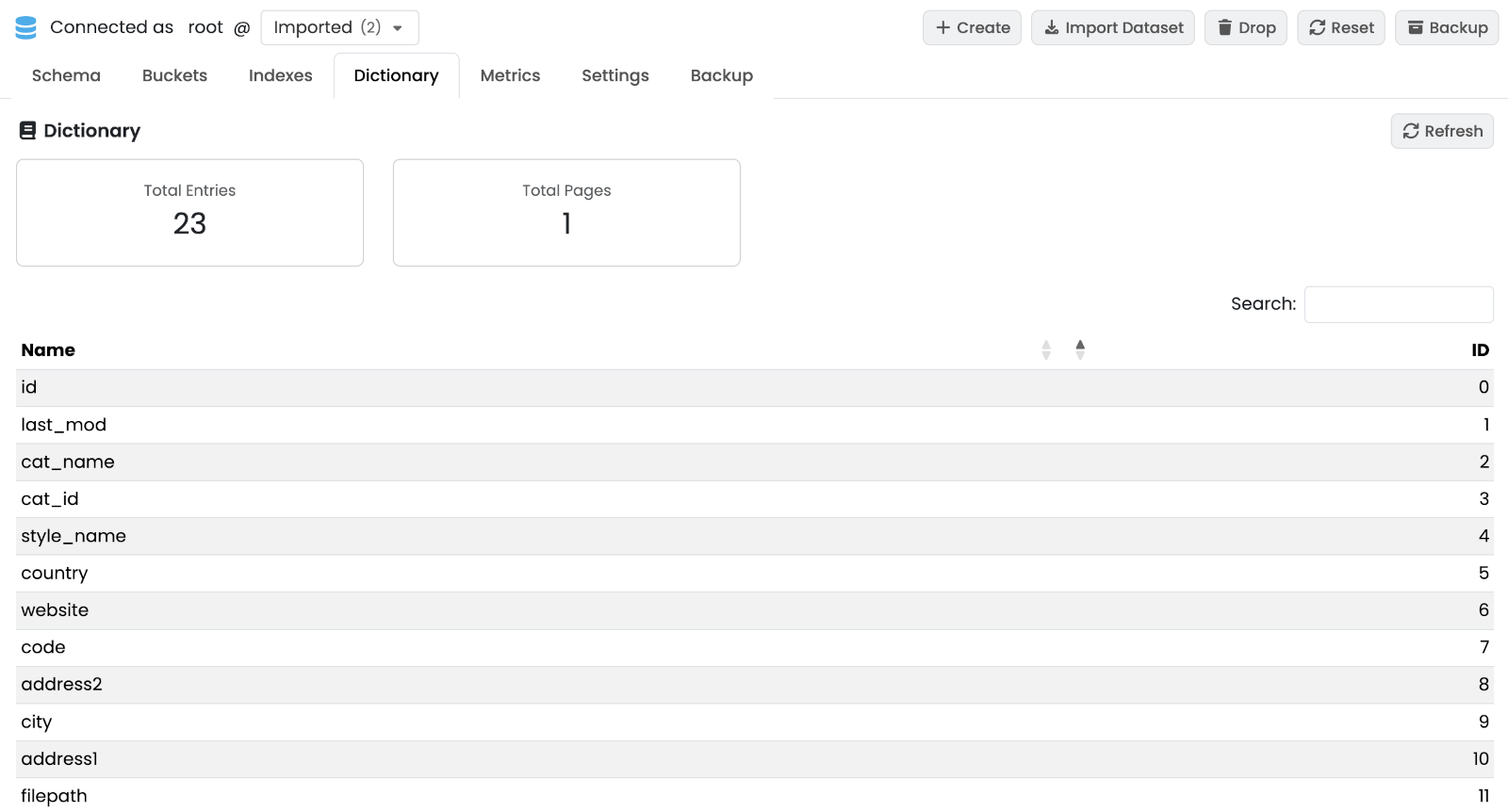

Dictionary

The dictionary deduplicates property names and string values across the database. The sub-tab shows summary cards (total entries, total pages) and a paginated table of the dictionary entries.

Dictionary sub-tab

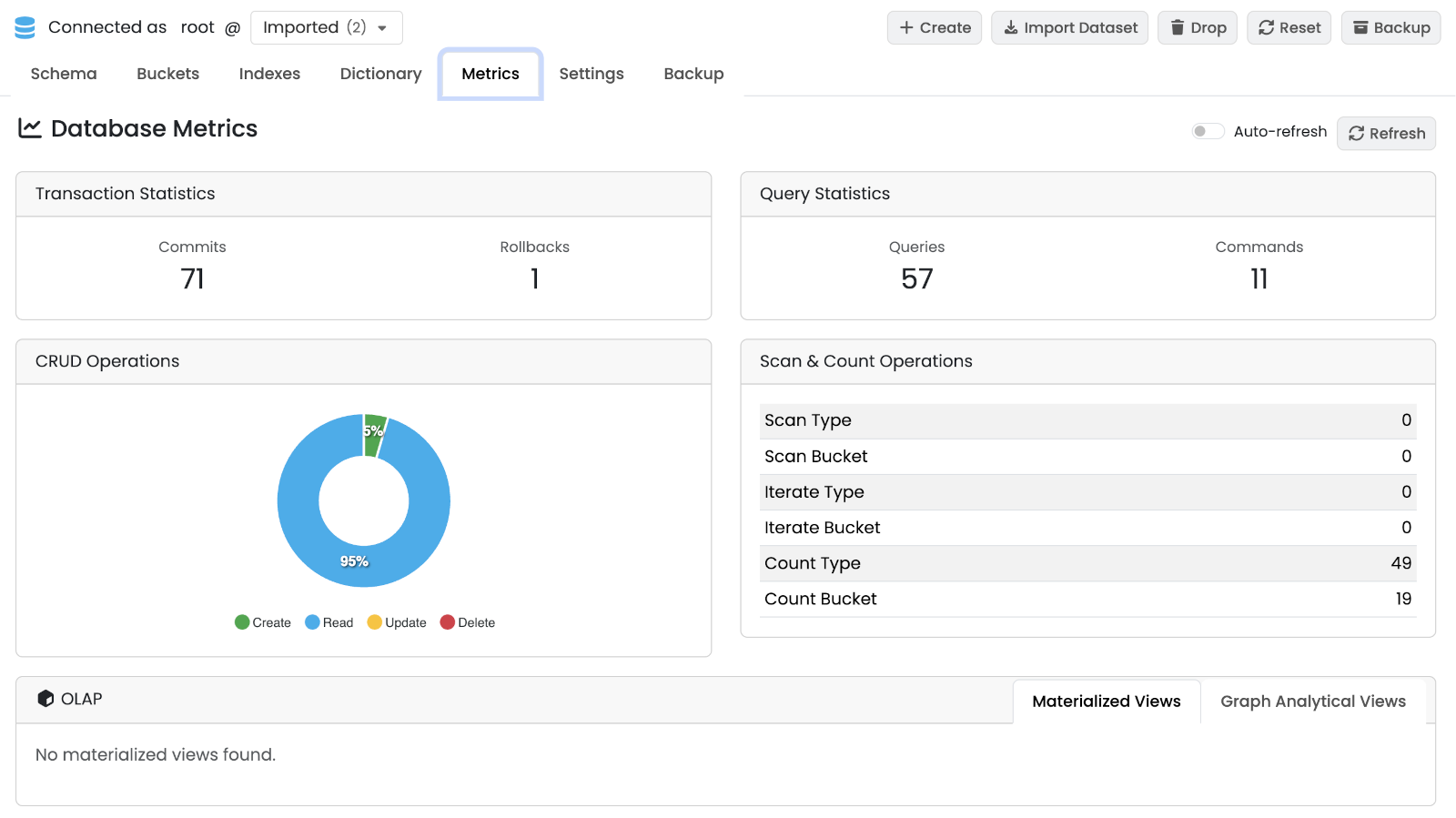

Metrics

Live counters and charts for the selected database. Auto Refresh keeps the values updated at a fixed interval.

  • Transaction Statistics — commits and rollbacks since startup.

  • Query Statistics — queries and commands executed.

  • CRUD Chart — running chart of creates, reads, updates and deletes.

  • Scan & Count — full-scan and count operations per type.

  • OLAP — nested tabs for Materialized Views and Graph Analytical Views: refresh status, last computation, row counts.

Metrics sub-tab

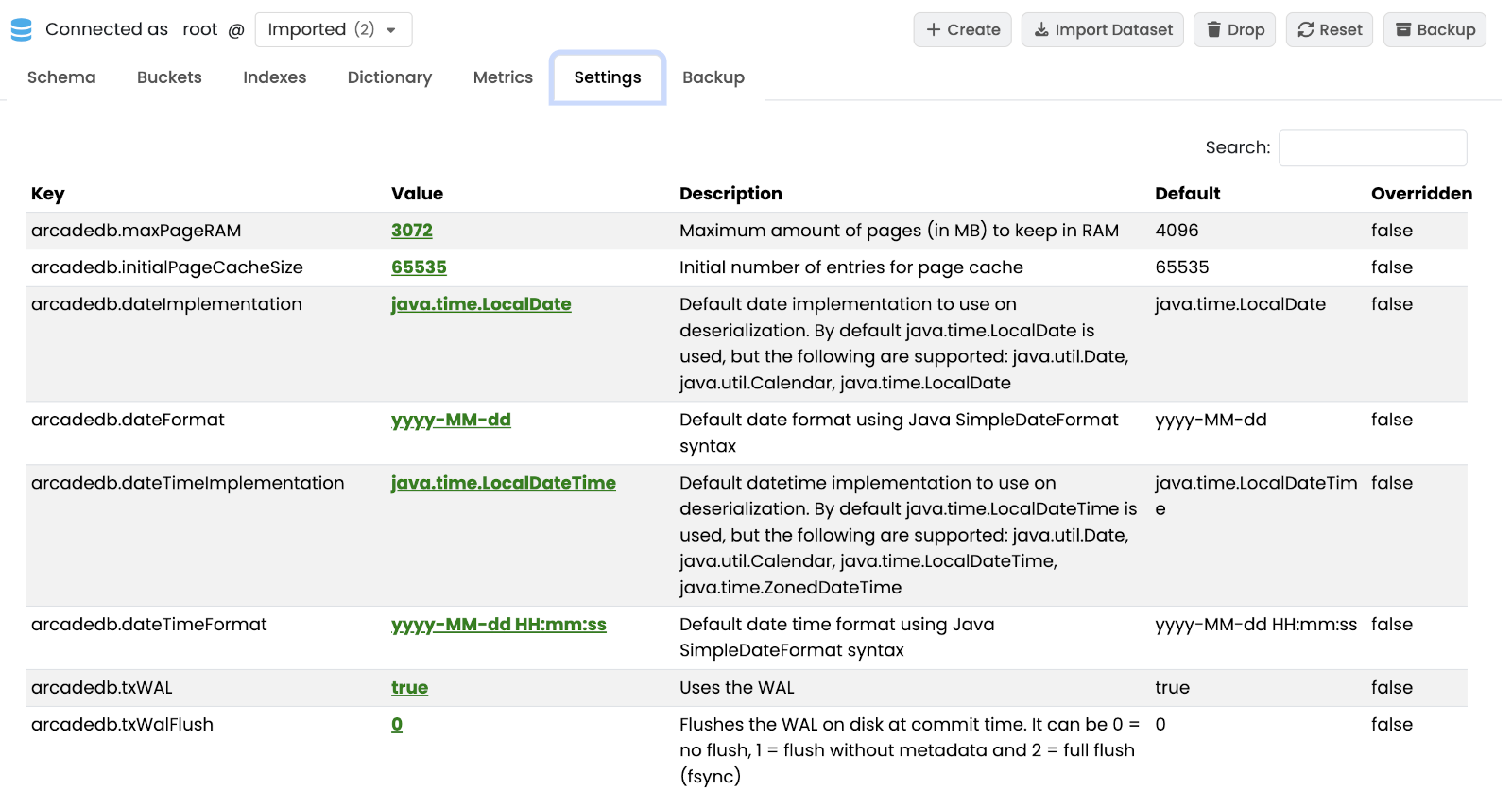

Database Settings

Key-value table of the database-scoped configuration settings. Values are editable by users with database-settings permission; others see a read-only view. See Settings for the full setting reference.

Database Settings sub-tab

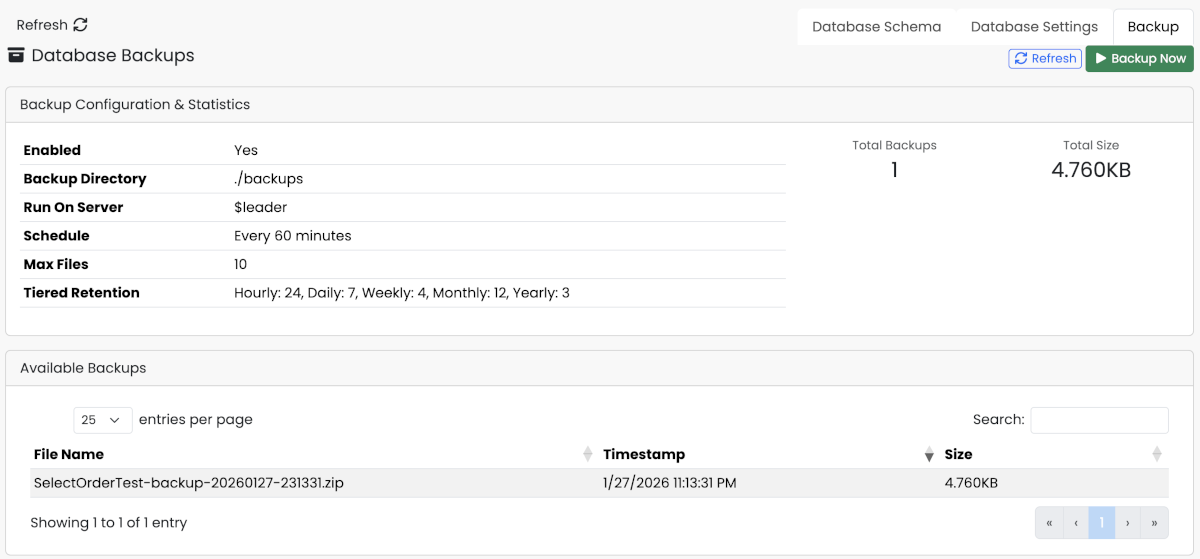

Backup

Per-database backup management.

The sub-tab displays:

  • Backup Configuration — current schedule and retention settings for this database (read-only here; configured server-wide in the Server › Backup panel).

  • Statistics — total number of backups and disk space used.

  • Available Backups — paginated list of backup files with timestamps and sizes.

From this sub-tab you can:

  • Click Refresh to reload the list.

  • Click Backup Now to trigger an immediate backup of the current database.

  • Restore or delete an individual backup from the row actions.

Database Backup sub-tab
